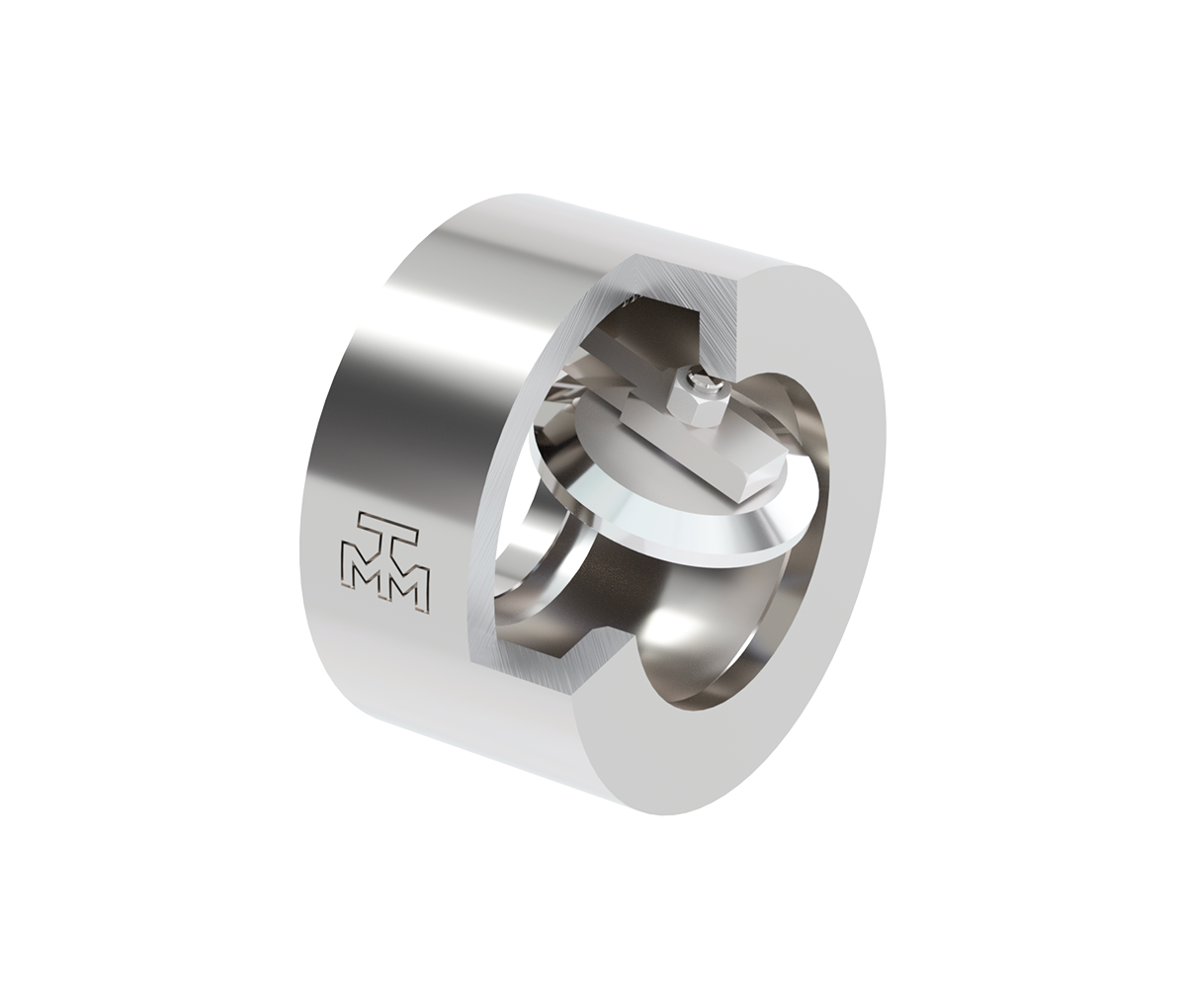

Wafer Single Plate Check valve

ASME Class 150 Lbs to 2500 Lbs – 1/2″ to 4″
BS EN 1092 Class PN 2,5 bar to PN 400 bar – 1/2″ to 4″

Standard Design: ASME B16.34, ASME B31.3, ISO 15761, API 602, API 594
Ends Connection: FLANGED – ASME B16.5, FLANGED – BS EN 1092
End to End: ASME B16.10 Short and Long Pattern, BS EN 558, According to Customer Request, Manufacturer Standard
Seat Type: Integral
Obturator Type: Disc
Seat Seal: Metal
Available Materials: Carbon Steel, Low Temperature Carbon Steel, Martensitic Stainless Steel, Low Alloy Steel, Austenitic Stainless Steel, Duplex, Super Duplex, Nickel Alloy Steel, Bronze, Titanium
Additional Features & Accessories: Nipples, Gusset, Jacket and Semi Jacket
Vent & Drain: Plugged, Flanged, With Valve, Any type of connection upon request
Testing and Certification: Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional, ISO 5208 – API 598 – API 6A – API 6D, Cryogenic and Low Temperature Test: BS 6364 – ISO 28921, Fugitive Emission Test: ISO 15848, Fire Safe: ISO 10497, PED 2014/68/EU Mod. H, ATEX 2014/34/EU

Ad hoc engineering to suit customer projects requirements.
