Through Conduit VALVE

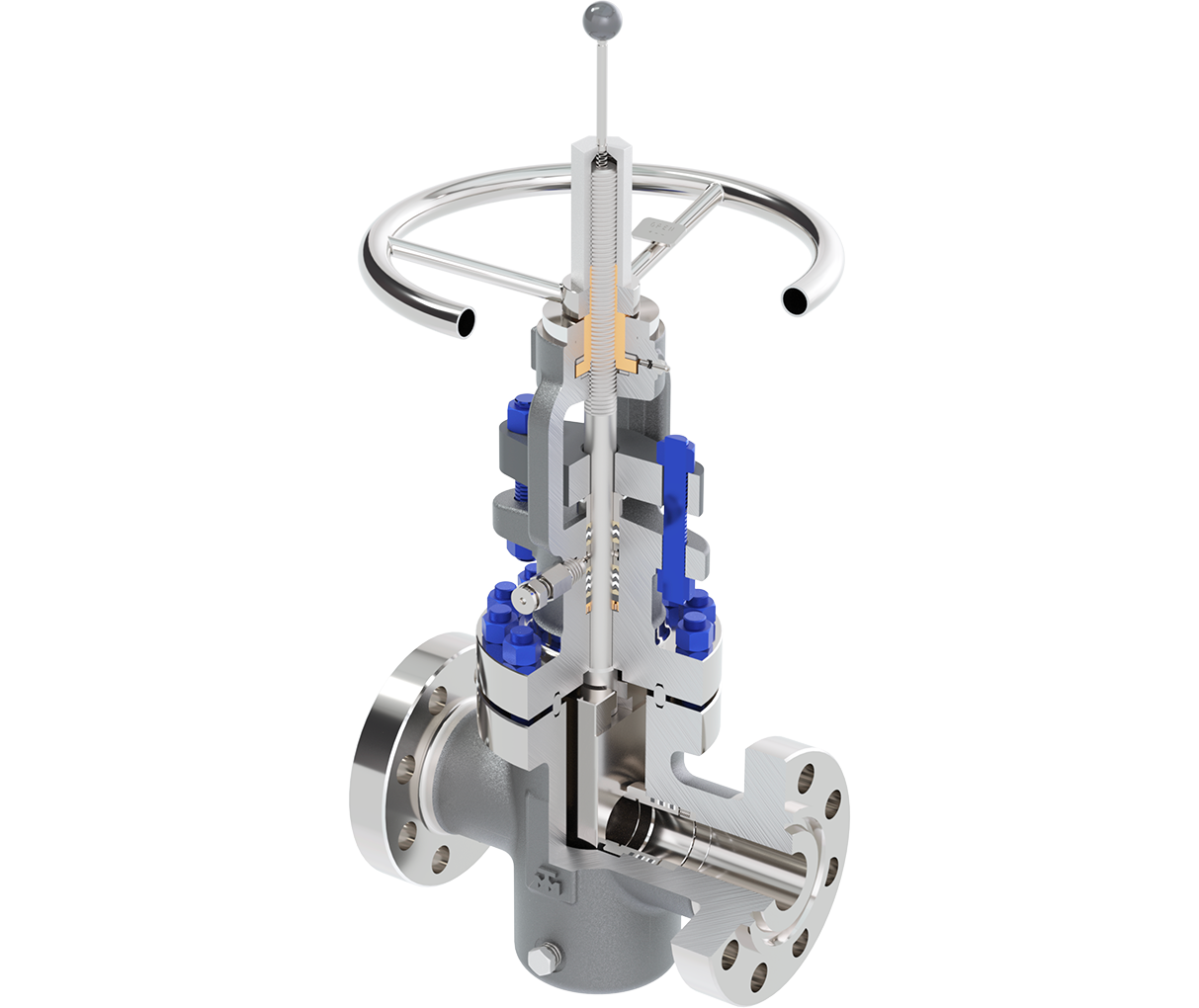

Through Conduit Slab Gate valve

Richiedi informazioniScarica la scheda tecnica

Classi di pressione e taglie disponibili

ASME Class 150 Lbs to 4500 Lbs – 1/2″ to 10″
API 6A Class 2000 Psi to 20000 Psi – 1.13/16″ to 11″
BS EN 1092 Class PN 2,5 bar to PN 400 bar – 1/2″ to 10″

Caratteristiche tecniche

  • Standard Design: ASME B16.34, ASME B31.3, ISO 15761, API 602, API 6A, API 6D
  • Ends Connection: SW – ASME B16.11, NPT – ASME B1.20.1, BW – ASME B16.25, FLANGED – ASME B16.5, FLANGED – API 6A, FLANGED – BS EN 1092, COMPACT FLANGE – NORSOK L-005, HUB – According to Customer Request
  • End to End: ASME B16.10 Short and Long Pattern, BS EN 558, According to Customer Request, Manufacturer Standard
  • Body/Bonnet Connection: Bolted Bonnet, Welded Bonnet, Pressure Seal
  • Seat Type: Spring Energized Floating
  • Obturator Type: Solid Slab – Standard Acting, Reverse Acting
  • Stem Type: Outside Screw & Yoke,Inside Screw & Yoke, Rising Stem, Non Rising Stem, Rotating Stem, Non Rotating Stem, Anti Blow Out
  • Back Seat Type: Integral or Renewable
  • Body/Bonnet Gasket: Metal: Spiral Wound, Ring Joint, BX, Lenticular
  • Body/Seat Seal: O-ring; Lip Seal; PTFE Chevron Type
  • Stem Packing: Graphite, PTFE
  • Operator Type: Manual: Handwheel or Gearbox, Actuaded: Electric, Pneumatic, Hydraulic
  • Seat Seal: Metal
  • Available Materials: Carbon Steel, Low Temperature Carbon Steel, Martensitic Stainless Steel, Low Alloy Steel, Austenitic Stainless Steel, Duplex, Super Duplex, Nickel Alloy Steel, Bronze, Titanium
  • Additional Features & Accessories: Locking Device, Position Indicator, Stem Protection, Packing Complete with Lantern Ring and Grease Injector, Packing Vacuum Service, Loaded Spring Packing, Extended Bonnet, Collar Drip Plate, Insulation, Extended Stem, Quill, Nipples, Gusset, Jacket and Semi Jacket, Bare Stem complete with actuator flange, Operator Antitamper, Equalizing hole in Gate
  • Vent & Drain: Plugged, Flanged, With Valve, Any type of connection upon request
  • Testing and Certification: Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional, ISO 5208 – API 598 – API 6A – API 6D, Cryogenic and Low Temperature Test: BS 6364 – ISO 28921, Fugitive Emission Test: ISO 15848, Fire Safe: ISO 10497, PED 2014/68/EU Mod. H, ATEX 2014/34/EU

Ad  hoc engineering to suit customer projects requirements.
