Self Closing Lever valve

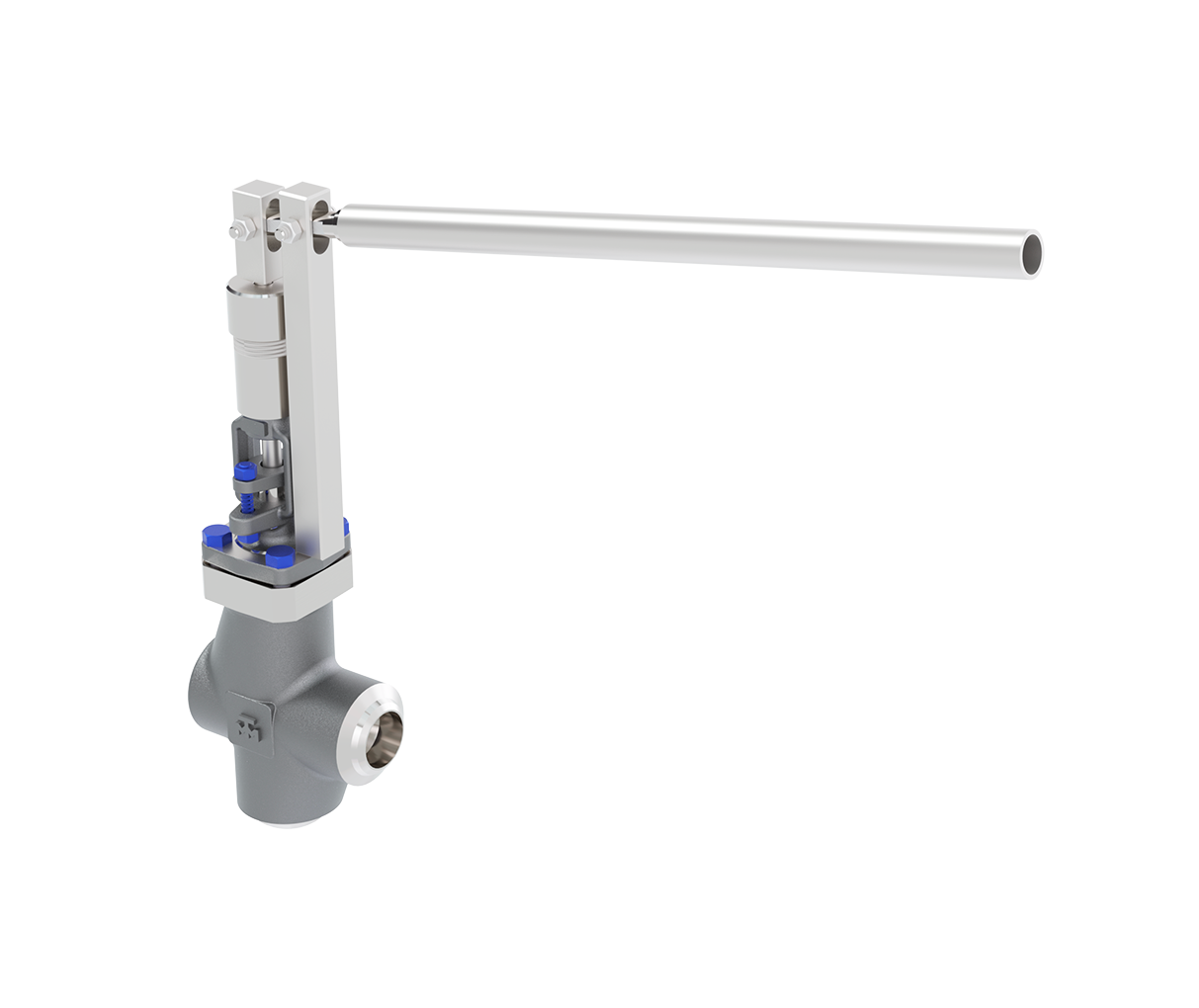

Self Closing Lever Angle Globe valve

Richiedi informazioniScarica la scheda tecnica

Classi di pressione e taglie disponibili

ASME Class 150 Lbs to 800 Lbs – 1/4″ to 4″
BS EN 1092 Class PN 2,5 bar to PN 100 bar – 3/8″ to 4″

Caratteristiche tecniche

  • Start Design: ASME B16.34, ASME B31.3, ISO 15761, API 602
  • Ends Connection: SW – ASME B16.11, NPT – ASME B1.20.1, BW – ASME B16.25, FLANGED – ASME B16.5, FLANGED – BS EN 1092
  • End to End: ASME B16.10 Short and Long Pattern, BS EN 558, According to Customer Request, Manufacturer Standard
  • Body/Bonnet Connection: Bolted Bonnet
  • Seat Type: Integral or Renewable
  • Obturator Type: Disc, Needle, Parabolic, Spherical
  • Stem Type: Outside Screw & Yoke,Inside Screw & Yoke, Rising and Non Rotating Stem, Anti Blow Out
  • Back Seat Type: Integral or Renewable
  • Body/Bonnet Gasket: Metal: Spiral Wound, Ring Joint
  • Seat Seal: Metal
  • Stem Packing: Graphite, PTFE
  • Operator Type: Manual : Lever
  • Available Materials: Carbon Steel, Low Temperature Carbon Steel, Martensitic Stainless Steel, Low Alloy Steel, Austenitic Stainless Steel, Duplex, Super Duplex, Nickel Alloy Steel, Bronze, Titanium
  • Additional Features & Accessories: Locking Device, Packing Complete with Lantern Ring and Grease Injector, Packing Vacuum Service, Loaded Spring Packing, Quill, Nipples, Gusset, Jacket and Semi Jacket
  • Vent & Drain: Plugged, Flanged, With Valve, Any type of connection upon request
  • Testing and Certification: Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional, ISO 5208 – API 598 – API 6A – API 6D, Cryogenic and Low Temperature Test: BS 6364 – ISO 28921, Fugitive Emission Test: ISO 15848, Fire Safe: ISO 10497, PED 2014/68/EU Mod. H, ATEX 2014/34/EU

Ad  hoc engineering to suit customer projects requirements.
