Pressure Seal VALVE

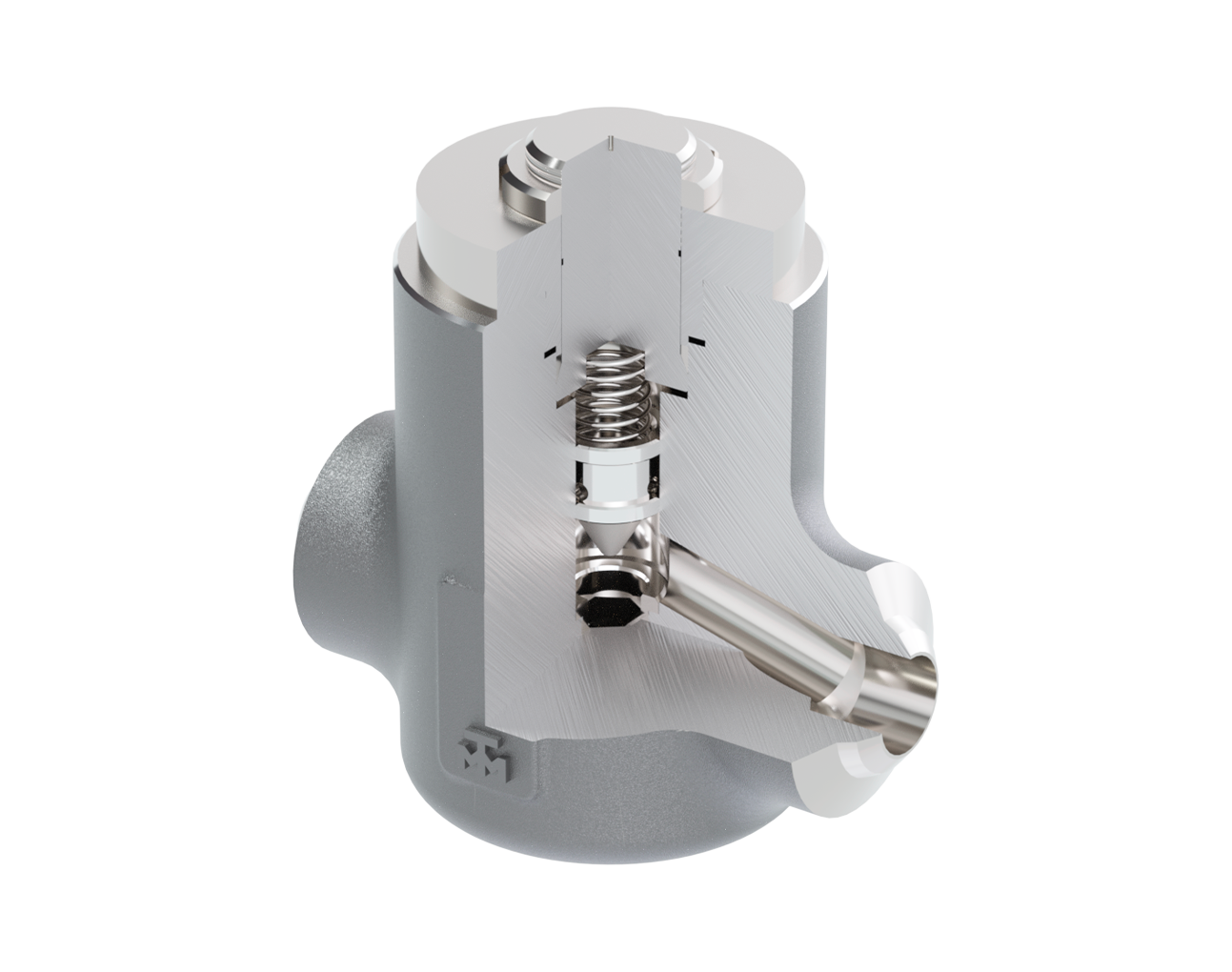

Pressure Seal Piston Check valve

Richiedi informazioniScarica la scheda tecnica

Classi di pressione e taglie disponibili

ASME Class 150 Lbs to 4500 Lbs – 1/4″ to 10″
API 6A Class 2000 Psi to 20000 Psi – 1.13/16″ to 11″
BS EN 1092 Class PN 2,5 bar to PN 400 bar – 3/8″ to 10″

Caratteristiche tecniche

  • Standard Design: ASME B16.34, ASME B31.3, ISO 15761, API 602, API 6A, BS 1868, MSS SP-144
  • Ends Connection: SW – ASME B16.11, NPT – ASME B1.20.1, BW – ASME B16.25, FLANGED – ASME B16.5, FLANGED – API 6A, FLANGED – BS EN 1092, COMPACT FLANGE – NORSOK L-005, HUB – According to Customer Request
  • End to End: ASME B16.10 Short and Long Pattern, BS EN 558, According to Customer Request, Manufacturer Standard
  • Body/Cover Connection: Pressure Seal
  • Seat Type: Integral or Renewable
  • Obturator Type: Piston, Parabolic, Spherical
  • Body/Bonnet Gasket: Metal: Seal Ring
  • Seat Seal: Metal, Soft
  • Available Materials: Carbon Steel, Low Temperature Carbon Steel, Martensitic Stainless Steel, Low Alloy Steel, Austenitic Stainless Steel, Duplex, Super Duplex, Nickel Alloy Steel, Bronze, Titanium
  • Additional Features & Accessories: Nipples, Gusset, Jacket and Semi Jacket
  • Vent & Drain: Plugged, Flanged, With Valve, Any type of connection upon request
  • Testing and Certification: Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional, ISO 5208 – API 598 – API 6A – API 6D, Cryogenic and Low Temperature Test: BS 6364 – ISO 28921, Fugitive Emission Test: ISO 15848, Fire Safe: ISO 10497, PED 2014/68/EU Mod. H, ATEX 2014/34/EU

Ad  hoc engineering to suit customer projects requirements.
