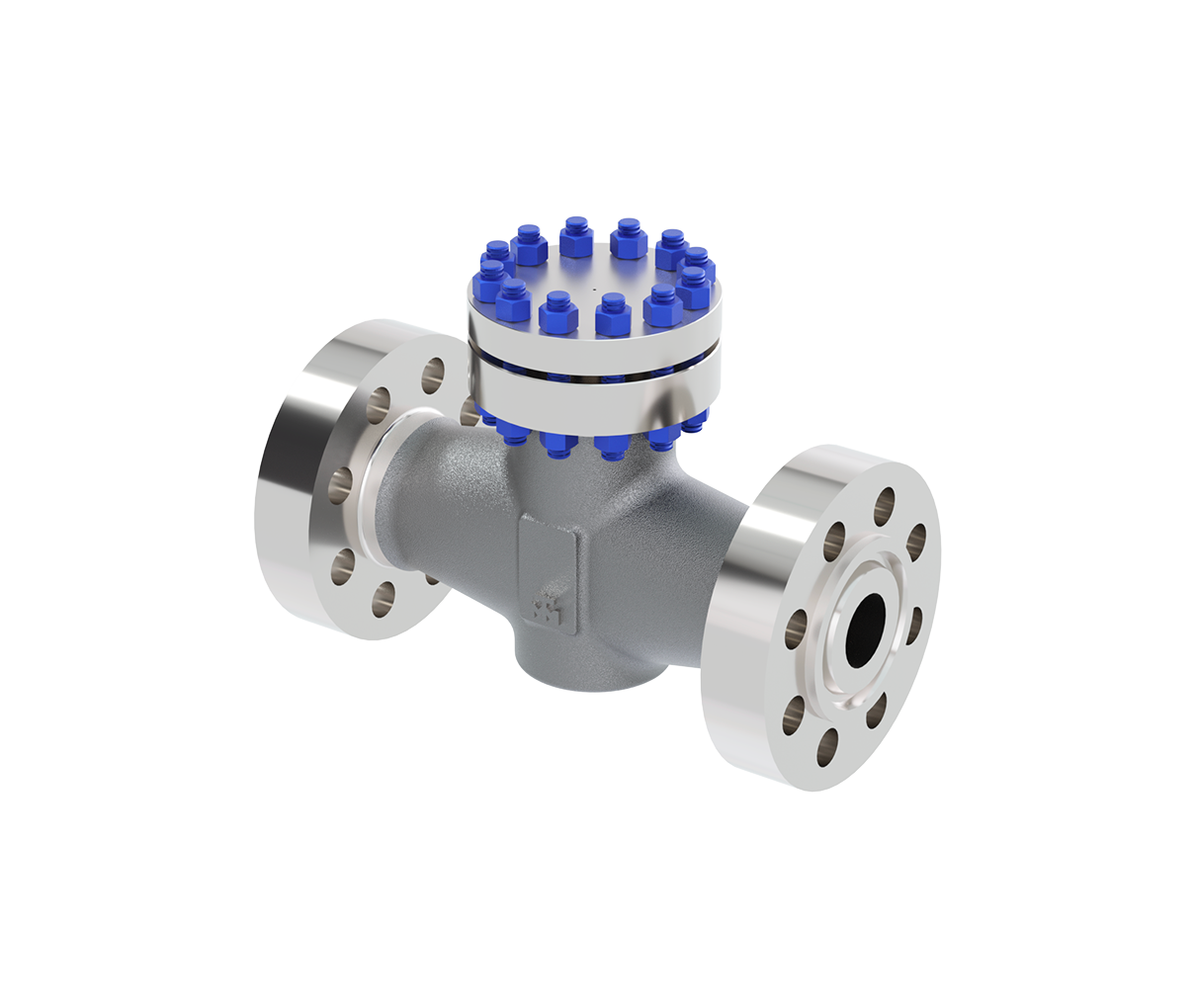

Cryogenic Swing Check valve

ASME Class 150 Lbs to 4500 Lbs – 1/4″ to 10″
BS EN 1092 Class PN 2,5 bar to PN 400 bar – 3/8″ to 10″

Standard Design: ASME B16.34, ASME B31.3, ISO 15761, API 602, API 6A, API 6D, BS 1868, MSS SP-134
Ends Connection: SW – ASME B16.11, NPT – ASME B1.20.1, BW – ASME B16.25, FLANGED – ASME B16.5, FLANGED – BS EN 1092, COMPACT FLANGE – NORSOK L-005, HUB – According to Customer Request
End to End: ASME B16.10 Short and Long Pattern, BS EN 558, According to Customer Request, Manufacturer Standard
Body/Cover Connection: Bolted Cover, Welded Cover
Seat Type: Renewable Press Fit or Threaded
Obturator Type: Disc
Body/Bonnet Gasket: Metal: Spiral Wound, Ring Joint, Lenticular
Seat Seal: Metal, Soft
Available Materials: Austenitic Stainless Steel
Additional Features & Accessories: Nipples, Gusset, Jacket and Semi Jacket
Vent & Drain: Plugged, Flanged, With Valve, Any type of connection upon request
Testing and Certification: Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional, ISO 5208 – API 598 – API 6A – API 6D, Cryogenic and Low Temperature Test: BS 6364 – ISO 28921, Fugitive Emission Test: ISO 15848, Fire Safe: ISO 10497, PED 2014/68/EU Mod. H, ATEX 2014/34/EU

Ad hoc engineering to suit customer projects requirements.
